    High Definition Led Rental Screen P3 P4 P5 Led Display Synchronization Control

    Ask Lasest Price
    Brand Name : sol colur
    Model Number : p5
    Certification : FCC、CE、IP65
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 5000 Square Meters/ per month
    Delivery Time : 15-20days
    • Product Details
    • Company Profile

    High Definition Led Rental Screen P3 P4 P5 Led Display Synchronization Control

    Indoor 5mm high definition led video wall full color p3 p4 p5 rental led screen


    Detailed Product Description:


    Module size: 320*160mm Brightness: 900-1000nits

    Control method: Synchronization Color: 1R1G1B

    Module number: Indoor P5 Package mode: Nationstar SMD2121

    Warranty: 2 Years Pixel resolution: 32dots(W)*32dots(H)


    Product Parameters:

    Unit ModuleItemParameter
    Model NumberSF-TS5.0-16S-A
    Module size320mm*160mm
    Pixel pitch5mm
    Pixels Density40000dots/m2
    Pixel configuration1R1G1B
    Package modeNationstar SMD2121
    Pixel resolution32dots(W)*32dots(H)
    Max Power25W
    Module thickness14.27mm
    Weight0.21kg
    Drive typeConstant drive
    Scan mode1/16
    Port typeHUB75-A
    Brightness of white balance≥1600cd/m2

    LED

    Cabinet


    Dimension640mm*640mm*
    Monomer Module Number16pcs
    Power supply5V/40A*2pc
    Thermal dischargefan 2pcs
    Pixel per cabinet128mm*128mm
    Best viewing distance5M~30M
    Best viewing angle110°(W) 110°(H)
    Temperature

    storage:-35℃~+85℃

    working:-20℃~+50℃

    Relative humidity10%-95%
    Thickness85mm
    PowerWorking voltageAC220V±10%
    Average Power consumption500W/㎡
    Max.Power consumption≤1180W/㎡
    Current≤20mA(single LED)
    Control systemCPUPentium4 or above P4 or more
    Operation systemWIN98/2000/NT/XP/WIN7
    Control methodSynchronization

    Main technical

    parameter

    Driving deviceConstant drive IC
    Refresh frequency≥1080HZ
    Grey scale/colors4096gray level/16.7M colors
    MTBF≥9000hours
    Power switchAutomatic switch

    Advantage:

    1.Low attenuation,high gray level,good stability,anti-static

    2.Ultra high brightness,low attenuation,high reliability and weather ability.

    3.Large viewing angle and smooth displaying provide excellent visual effect from every angle.

    4.High refresh rate, high gray scale, ghost-canceling, low power consumption, and dot-by-dot-calibration.

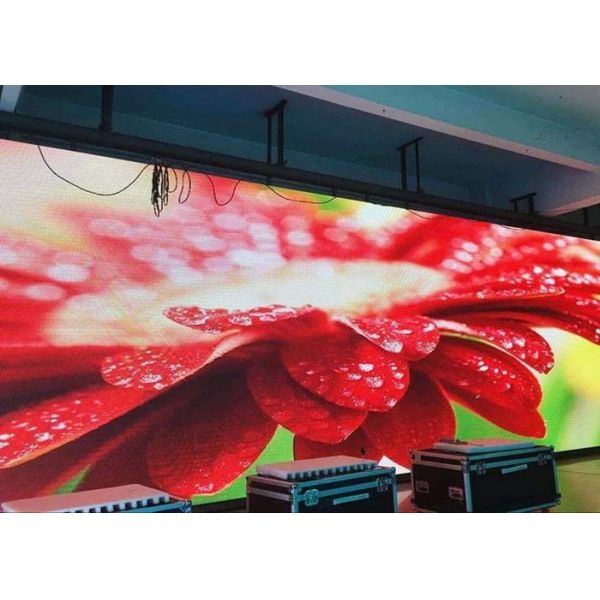

    Project Show:
    High Definition Led Rental Screen P3 P4 P5 Led Display Synchronization Control
